The {a}OS Reference Stack

7 strata. 2 axes. From user intent down to raw model infrastructure.

The 7 Strata

Each stratum answers a specific boundary question about the agentic system:

Cross-cutting Axes

Two axes cut across all strata, representing concerns that apply at every layer:

Axis	Scope
Governance & Trust	Policy enforcement, identity/access, compliance, audit, safety filters, content moderation
Observability & Evaluation	Distributed tracing, structured logging, benchmarks, A/B testing, drift/anomaly detection, SLO alerting

Ontology Hierarchy

Every AI product or tool is classified through a 4-level hierarchy:

Level	Definition	Example
Stratum	Top-level layer in the stack	L4 Orchestration & Decisioning
Substrate	Tools/frameworks operating in that stratum	Workflow Engines, Agent Frameworks
Construct	Meaningful artifact produced by a substrate	execution_plan, agent_roster
Primitive	Smallest atomic unit inside a construct	task_id, retry_count, priority

Core Agentic Concepts

These are the current first-class agentic concepts the explorer should understand semantically — not just as raw string matches. Each concept below includes its current top-3 mapped products or workflows in the catalog.

Concept	Definition	Current Top 3
Harness	Governing scaffold around execution: sequencing, context control, checkpoints, and stop conditions.	BMAD · GSD · Superpowers
loop-core	Canonical control cycle for agent behavior: plan → act → evaluate → adjust.	LangGraph · Eval Workflow · Human-in-the-Loop
loop-research	Discovery loop for gathering evidence, validating sources, and refining the problem before implementation.	Azure AI Search · Exa MCP · RAG Pipeline
loop-eval	Quality loop for scoring outputs, diagnosing failures, and feeding improvements back into prompts or workflows.	Eval & Improve Loop · Agent Skills · Testing Strategy
loop-implementation	Delivery loop for spec → build → test → review → iterate.	BMAD Method · Superpowers · Claude Code
loop-recovery	Failure-handling loop for retry, rollback, checkpoint, and resume semantics.	GSD · Shipyard · LangGraph
RAG	Retrieval-augmented generation: grounding model outputs with retrieved evidence and citations.	Azure AI Search · RAG Pipeline · Mem0
MCP	Model Context Protocol — a standard interface for exposing tools, resources, and prompts to agents.	GitHub MCP · Playwright MCP · Filesystem MCP
Memory	Persistent or working context used across turns, sessions, and tasks.	Mem0 · Memory MCP · Hermes Agent
Governance	Rules, permissions, approvals, safety boundaries, and audit logic that constrain action.	Open Policy Agent · Security Audit · Human-in-the-Loop
tool-calling	The construct enabling a model to select, format arguments for, and invoke external APIs.	MCP Filesystem · MCP Brave Search · Agent Skills
multi-agent	Coordination where multiple specialized agents collaborate, delegate tasks, and share state.	CrewAI · LangGraph · OpenHands
handoff	Secure transfer of control, working context, and state from one agent to another.	LangGraph · CrewAI · Human-in-the-Loop
checkpoint	Persists an agent's exact state at a specific moment for time travel, durable execution, and fault recovery.	LangGraph · Mem0 · MCP Memory
fallback	Implements retry strategies, graceful degradation, or alternate routing when a primary step fails.	LangGraph · Claude Code · RAG Pipeline
routing	Dynamically dispatches requests to the most appropriate model, prompt, or specialized agent.	Azure AI Foundry · LangGraph · CrewAI
guardrails	Validates inputs and outputs to ensure safety, policy compliance, and defense against prompt injection.	OPA · SK Security · Human-in-the-Loop
observability-loop	Captures end-to-end traces and metrics to evaluate decisions, detect regressions, and drive improvement.	Eval Workflow · LangGraph · CI/CD Workflow
approval-loop	Pauses agent execution at critical junctures to require explicit human sign-off before proceeding.	Human-in-the-Loop · Claude Code · Cursor
memory-loop	Continuous cycle of storing, retrieving, and consolidating interactions into episodic and semantic stores.	Mem0 · Azure AI Search · MCP Memory
context-engineering	Dynamically managing, compressing, and structuring information fed into the context window for maximum reasoning.	GitIngest · Cursor · Claude Code
planning	Hierarchical task decomposition and controlled sequencing that keeps long-horizon execution on-policy.	LangGraph · CrewAI · Hermes

Head-to-Head Matchups

These curated comparison sets mirror the in-app Head-to-Head tab and are intended for structured selection tradeoffs.

Matchup	When to choose #1	When to choose #2	When to choose #3
LangGraph vs CrewAI vs AutoGen	LangGraph: deterministic, stateful production workflows	CrewAI: fast role-based multi-agent prototyping	AutoGen: conversational research coordination
Mem0 vs Zep vs Custom Vector Stores	Mem0: fast personalization + memory integrations	Zep: temporal fact evolution and graph memory	Custom: full control of retrieval stack and operations
Claude Code vs Devin vs Aider	Claude Code: deep multi-file reasoning/refactors	Devin: autonomous backlog execution in cloud sandbox	Aider: git-native local pair-programming
Azure AI Search vs Pinecone vs Weaviate	Azure AI Search: enterprise hybrid search in Azure	Pinecone: simplest low-ops serverless vector backend	Weaviate: flexible hybrid + multimodal/search modeling
OPA vs Cedar vs Custom Policy	OPA: broad policy-as-code governance across stack	Cedar: high-performance AWS-aligned authorization	Custom: early prototype only, low governance maturity

Golden Path Architectures

Recommended starter stacks that combine product synergy with clear mission boundaries.

Build	Mission	Core Stack	Not ideal for
Enterprise RAG Fortress	Accurate, governed enterprise retrieval with strict access control and policy enforcement.	Azure AI Foundry · OPA · LangGraph · Azure AI Search · Mem0	Lightweight chatbots without policy/memory requirements
Autonomous Code Forge	Multi-file implementation + review + evaluation + deployment with quality gates.	Claude Code · MCP Filesystem · SK Code Review · Eval WF · CI/CD WF	Fast inline visual autocomplete-first pair programming
Collaborative Research Swarm	Role-based research synthesis with retrieval and scored output quality control.	CrewAI · MCP Brave Search · MCP Memory · Eval WF	Deterministic transaction processing with strict rollback
Full-Stack App Factory	Prompt-to-UI acceleration with backend wiring and automated deployment path.	v0 · Cursor · MCP PostgreSQL · MCP GitHub · Shipyard	Hands-off autonomous backlog clearing
Regulated Compliance Engine	High-risk workflows with deterministic control flow, policy enforcement, and mandatory approval gates.	LangGraph · OPA · SK Security · Human-in-Loop WF · Eval WF	Open-ended exploratory or creative ideation workflows

Glossary

Term	Meaning
Primary Stratum	The single layer where a product delivers its core value
Secondary Stratum	Additional layers a product touches with meaningful capability
Axis Role	A product's contribution to a cross-cutting concern (governance or observability)
Confidence Score	0.0–1.0 rating of how certain a classification placement is
Rationale	Human-readable explanation of why a product is placed at a given stratum
Multi-Residency	A product spanning multiple strata simultaneously
Harness	A structured wrapper that constrains how an AI agent or pipeline executes — enforcing sequencing, context budgets, checkpoints, and stop conditions. A harness sits at L4 (Orchestration) and defines how work is done, not just what to do. Examples: execution harnesses (GSD, BMAD), test harnesses (Superpowers), and CI/CD harnesses (Harness.io). Not to be confused with the agent or the tools it calls — the harness is the governing scaffold around them. → preview in Explorer
loop-core	The canonical agentic control cycle: plan → act → evaluate → adjust, repeated until stop conditions are met.
loop-research	Discovery/evidence loop: gather sources, test hypotheses, resolve contradictions, then refine the problem framing.
loop-eval	Evaluation loop: score outputs against quality criteria, diagnose failures, and feed fixes back into prompts, routing, or policy.
loop-implementation	Build loop: spec → implement → test → review → iterate. Focuses on production-safe delivery and regression control.
loop-recovery	Failure-handling loop: backoff, retry, checkpoint, rollback, and resume — designed to preserve forward progress under partial failure.
Agent	An LLM-backed system that perceives context, reasons about goals, selects tools or sub-agents, executes actions, and updates state — in a loop until a stop condition is met. Agents span L3–L7 depending on capability; the term alone does not imply a specific stratum.
Primitive	The smallest named capability unit within a construct (e.g. goal_statement, tool_call). A product can support a primitive partially or fully; evidence quality determines confidence.
Construct	A named cluster of related primitives within a stratum (e.g. Intent Object at L7). Constructs are the intermediate unit between stratum and primitive in the {a}OS ontology hierarchy.

Classification Methodology

How products are mapped to the {a}OS reference model.

The Classification Model

Each entity in the explorer receives a structured classification:

Field	Description
Primary Stratum	The single layer where the product delivers its core value
Secondary Strata	Additional layers the product touches with meaningful capability
Axis Roles	Contributions to Governance & Trust or Observability & Evaluation
Capabilities	Named features mapped to specific strata
Constructs	Artifacts or state objects the product creates or manages
Primitives	Atomic units the product reads or writes
Confidence	0.0–1.0 certainty rating
Rationale	Explanation of the classification
Evidence	Optional links, quotes, or documentation

Confidence Levels

Level	Score	Badge	Meaning
High	≥ 0.85	0.92	Strong evidence, clear primary layer, multiple corroborating sources
Medium	0.60 – 0.84	~0.75	Reasonable placement, may have secondary interpretations
Low	< 0.60	~0.45	Disputed or emerging product, placement may change

Placement Rules

1. One primary stratum — every product gets exactly one core layer
2. Zero or more secondary strata — meaningful but non-primary capabilities
3. No forced exclusivity — a product spanning 5 layers shows all 5
4. Primary is visually stronger — full opacity vs dimmed for secondary
5. Evidence-backed — every placement has a rationale

Disputed Classifications

When a classification is uncertain:

• Confidence score will be Medium or Low
• Rationale will note the alternative interpretation
• Future versions will support explicit dispute annotations

Product Classifications

The MVP product set classified against the {a}OS reference model.

MVP Product Set

Product	Vendor	Primary	Secondary	Deployment	Confidence
Azure AI Foundry	Microsoft	L1	L2, L3, L4	Cloud	0.92
Hermes	Internal	L4	L5, L6, L7	Hybrid	0.88
Paperclip	Internal	L7	L3, L4	Local	~0.75
CrewAI	CrewAI Inc	L4	L3	Cloud	0.90
Mem0	Mem0 AI	L2	—	Cloud	0.95
LangGraph	LangChain	L4	L3	Hybrid	0.88
Azure AI Search	Microsoft	L2	—	Cloud	0.93
Open Policy Agent	CNCF	L6	—	Hybrid	0.95

Azure AI Foundry

Primary: L1 Models & Infrastructure   0.92

Secondary: L2 Knowledge, L3 Execution, L4 Orchestration

Rationale: Built on Microsoft.CognitiveServices. Model hosting and inference is the core value prop; prompt flow, search, and agent capabilities are secondary strata.

Hermes

Primary: L4 Orchestration & Decisioning   0.88

Secondary: L5 Observability, L6 Governance, L7 Experience

Rationale: Hermes is an orchestration-first platform. Governance, observability, and UX layers are secondary capabilities.

Paperclip

Primary: L7 Experience & Intent   ~0.75

Secondary: L3 Execution, L4 Orchestration

Rationale: Desktop copilot with strong UX and intent parsing. Orchestration and execution are secondary.

CrewAI

Primary: L4 Orchestration & Decisioning   0.90

Secondary: L3 Execution

Rationale: Multi-agent crew framework focused on orchestrating agent collaboration and task delegation.

Mem0

Primary: L2 Knowledge & Memory   0.95

Secondary: None

Rationale: Purpose-built memory layer for AI. Manages context persistence, recall, and long-term agent memory.

LangGraph

Primary: L4 Orchestration & Decisioning   0.88

Secondary: L3 Execution

Rationale: Stateful graph-based agent orchestration framework from LangChain. Defines execution flows as directed graphs with state management.

Azure AI Search

Primary: L2 Knowledge & Memory   0.93

Secondary: None

Rationale: Cloud-native search-as-a-service with vector + hybrid retrieval. Core of many RAG pipelines.

Open Policy Agent

Primary: L6 Governance & Trust   0.95

Secondary: None

Rationale: General-purpose policy engine (Rego-based). Evaluates access control, resource constraints, and compliance policies.

User Guide

How to get the most out of {a}OS Explorer.

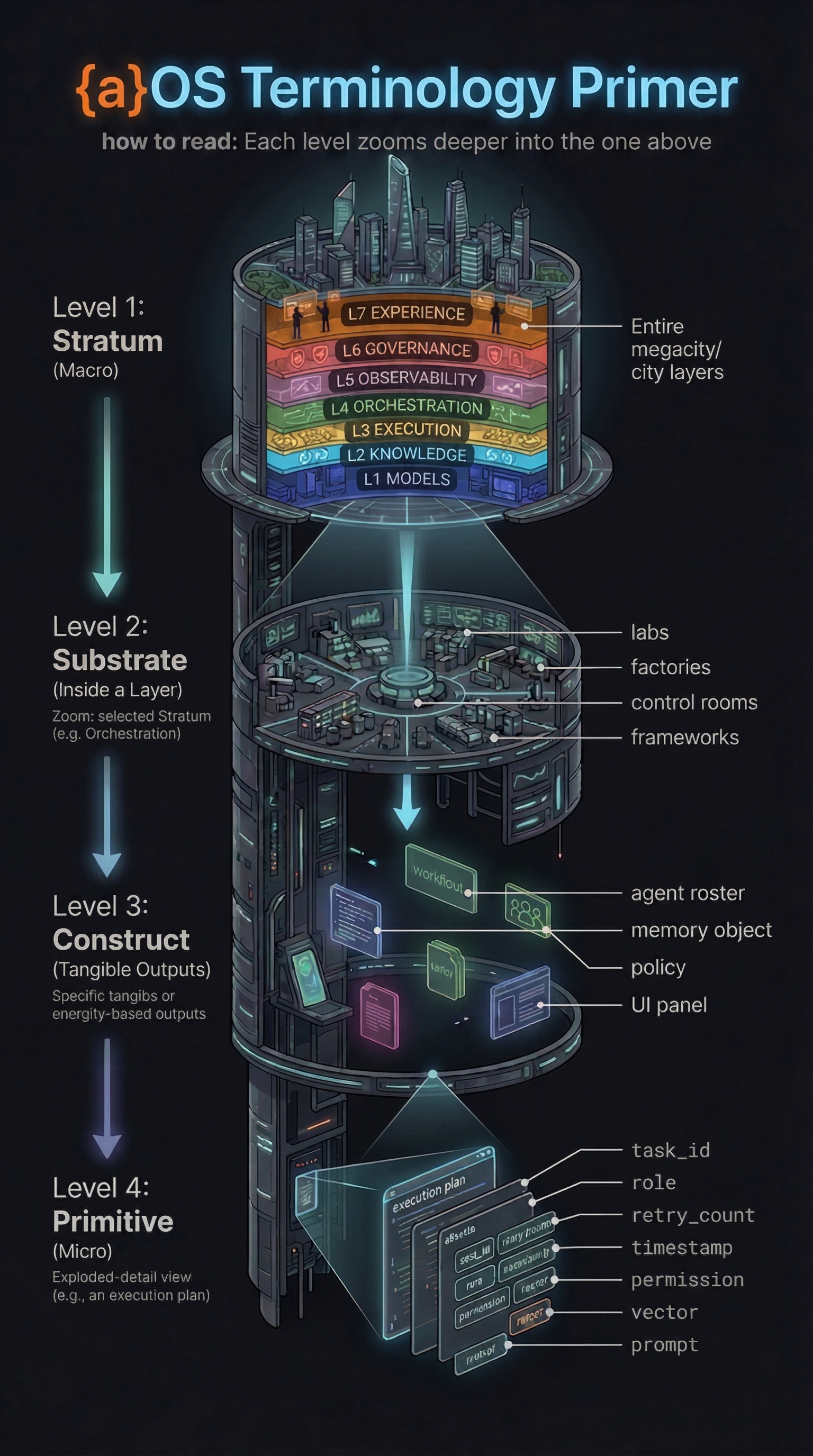

Terminology Primer

Five nouns power the entire {a}OS model. Lock these in and the Explorer feels intuitive instead of academic.

You see…	We call it	What it means	Explorer example
Pick a layer	Stratum (layer)	One of 7 horizontal tiers in the stack, each defined by a boundary question — “Who decides?”, “How does it learn?”, etc.	L4 Orchestration & Decisioning
Notice a theme that cuts across layers	Axis (cross-cut)	A concern that spans multiple strata vertically — security, cost, latency, compliance, etc. Axes surface in every layer but are governed holistically.	Security axis — touches L6 Governance, L3 Execution, and L1 Infrastructure
Expand a group inside a layer	Substrate (group)	A named group of related capabilities within a stratum. Each substrate bundles the frameworks, engines, or services that do work at that level.	Workflow Engines or Agent Frameworks inside L4
Click a card	Construct (concept / card)	A named concept or data structure within a substrate. Constructs are the items you browse, compare, and classify in the Explorer.	execution_plan, agent_roster
Read the fields on a card	Primitive (field)	The smallest atomic part inside a construct — a field, flag, token, parameter, or actionable unit.	task_id, retry_count, priority

Quick Start

1. Open the Explorer — you'll see the 7-stratum reference stack
2. The guided tour will introduce the key areas
3. Click any stratum to expand its substrates
4. Click a substrate to see its constructs
5. Click product cards (right panel) to see classification details

Browsing the Stack

The central canvas shows the {a}OS stack — 7 layers stacked vertically from L7 (top, user-facing) to L1 (bottom, infrastructure).

Each layer card shows:

• A color-coded bar on the left edge
• A layer number (L1–L7)
• A name and boundary question
• A substrate count

Click any layer to expand it in-place. Inside you'll find substrates, each with their own constructs. The breadcrumb at the top tracks your depth: {a}OS Stack → L4 Orchestration → Workflow Engines

Comparing Products

Click the + button on any product card to add it to your compare basket (up to 4). The badge in the header shows your count.

The compare view provides:

• Layer coverage heatmap
• Axis role comparison
• Construct/primitive overlap table
• Gap and overlap summary

Filtering

The left rail provides filter groups:

Filter	Values
Type	Products, Frameworks, Workflows, Agents, Skills, MCPs
Vendor	Microsoft, CrewAI Inc, Mem0 AI, CNCF, etc.
Deployment	Cloud, Local, Hybrid
License	Open Source, Proprietary
Stratum	L1–L7
Substrate	Agent Frameworks, Workflow Engines, Policy Engines, etc.
Construct	execution_plan, agent_roster, policy_bundle, memory_index

Keyboard Shortcuts

Key	Action
/	Focus search bar
1 – 7	Jump to stratum L1–L7
↑ ↓	Navigate between strata
→	Expand / drill deeper
←	Collapse / drill up
c	Toggle compare mode
?	Show all shortcuts
Esc	Close / collapse all

Interaction Modes

Mode	Description
Stack Mode	Classic 7-stratum vertical view (default)
Accordion Mode	Expand strata into substrate/construct/primitive rows
Compare Mode	Side-by-side comparison of 2–4 selected items
Category Mode	Toggle between Products, Frameworks, Agents, Workflows, Skills
Map Mode	Multi-layer overlap visualization
Axis Mode	Cross-cutting governance/observability analysis

Roadmap

Where {a}OS Explorer is today and where it's headed.

Current — MVP

• ✅ 7-stratum interactive explorer with progressive drilldown
• ✅ Stratum → Substrate → Construct expansion
• ✅ 5 featured product classifications with rationale
• ✅ Compare basket (add up to 4 products)
• ✅ Left rail: strata nav, axis toggles, filter placeholders
• ✅ Right rail: product cards, detail panel
• ✅ Full keyboard navigation
• ✅ Guided onboarding tour
• ✅ Cinematic dark-theme UI with aurora effects

Next Phase

• 🚧 Full compare screen with heatmap and gap analysis
• 🚧 Dedicated product detail pages
• 🚧 Dedicated stratum detail pages
• 🚧 Connected fuzzy search across all entities
• 🚧 Active filter system (vendor, deployment, license, maturity)
• 🚧 Framework comparison with translation matrix
• 🚧 Evidence panel with source links and quotes
• 🚧 All 8 MVP products fully classified
• 🚧 Mode pills connected to canvas views
• 🚧 Primitive-level drill (Construct → Primitives)

Future

• 💡 Saved comparison sets
• 💡 AI-assisted classification suggestions
• 💡 Team workspaces and collaboration
• 💡 Public submission pipeline with moderation
• 💡 Scenario-based evaluation mode
• 💡 Framework scoring and weighting system
• 💡 Alternate framework overlays

FAQ

Is this a product directory?

No. It's a classification and comparison engine. Products are mapped to a structured ontology, not just listed.

Can I add my own products?

Not in the MVP. Future phases will support submission pipelines with moderation.

How is {a}OS different from other AI frameworks?

{a}OS provides 7 distinct strata with explicit boundary questions, multi-residency classification, and cross-cutting axes. Most alternatives collapse these layers into fewer, coarser categories.

What if I disagree with a classification?

Every placement shows its confidence score and rationale. Disputed classifications are explicitly marked. Future versions will support formal dispute annotations.

Azure AI Foundry Setup

Step-by-step guides for standing up Azure AI Foundry, organized by {a}OS stratum. Each section shows what Foundry provides, what you must build, and how to set it up.

Getting Started

Azure AI Foundry (rebranded to "Microsoft Foundry" in 2026) is Microsoft's unified PaaS for AI — built on Microsoft.CognitiveServices. It bundles model hosting, agent frameworks, content safety, evaluation, and a management portal into a single control plane.

Prerequisites:

• Azure subscription (pay-as-you-go is fine for learning)
• Azure CLI installed — az --version
• Python 3.10+ and pip install azure-ai-projects azure-identity
• Register the provider: az provider register -n Microsoft.CognitiveServices

Foundry coverage across the {a}OS stack:

Stratum	Coverage	Key Takeaway
L7 Experience	Partial	Portal + publishing, but new portal lacks VNet support
L6 Governance	Partial	Content Safety + RBAC. No approval gates, no cost governance
L5 Observability	Partial	Tracing + evaluators. Breaks with private App Insights
L4 Orchestration	Partial	Prompt agents GA, workflow agents preview
L3 Execution	Good	Function calling, MCP, Code Interpreter all GA
L2 Knowledge	Partial	AI Search GA, Foundry IQ preview. No cross-agent state
L1 Models	Strong	Model catalog, PTU, fine-tuning, CMK — all GA

7-Day Learning Path

A structured curriculum that builds bottom-up through the strata. Each day: ~2-4 hours. See the full curriculum for detailed instructions.

L1: Models & Infrastructure

What Foundry Provides

Capability	Feature	Status
Model hosting	Model catalog (11K+ models, ~50-100 that matter)	GA
Deployment types	Standard, PTU, Global, DataZone, Batch	GA
Fine-tuning	SFT/DPO for GPT-4o/4.1; RFT for o4-mini	GA
Encryption	CMK via Azure Key Vault (FIPS 140-2)	GA
Edge inference	Foundry Local	GA

What You Build

• Custom model training (requires Azure ML — separate service)
• Cross-region disaster recovery (manual architecture)
• Gov cloud model gap mitigation (model abstraction layer)
• Hybrid cloud patterns for classified environments

Setup Walkthrough

1. Create a Foundry resource: az cognitiveservices account create --kind AIServices --sku S0
2. Create a project within the resource
3. Deploy a model: az cognitiveservices account deployment create --model-name gpt-4.1 --sku-name GlobalStandard
4. Test inference via Python SDK or REST API
5. Enable CMK encryption via Key Vault if handling sensitive data

Key Decisions

Decision	Option A	Option B	Recommendation
Deployment type	Pay-as-you-go	PTU (reserved)	Start with pay-as-you-go; PTU when you have predictable load
Scope	Global deployment	Regional	Regional for data residency; Global for cost optimization
Model portability	Hardcode model names	Abstraction layer	Always abstract — build for the model you might lose access to

Related: LinkedIn Post 2 (What Foundry Is), Post 6 (Models & Money) — Learning Day 1

L2: Knowledge & Memory

What Foundry Provides

Capability	Feature	Status
RAG engine	Foundry IQ	Preview
Vector search	Azure AI Search	GA
Agent memory	Conversation memory per agent	GA
File processing	File Search tool	GA (no VNet)
Document processing	Document Intelligence	GA

What You Build

• Cross-agent shared state (Cosmos DB)
• Memory compaction and lifecycle management
• Production RAG governance and access controls
• Context window management strategies

Setup Walkthrough

1. Create Azure AI Search: az search service create --sku standard
2. Configure private endpoint for AI Search
3. Upload documents and create a vector index
4. Connect AI Search as an agent tool
5. Configure BYO storage (Standard agent setup) — do not use Basic for production

Related: LinkedIn Post 8 (RAG & Data) — Learning Day 2

L3: Execution & Interfaces

What Foundry Provides

Capability	Feature	Status	VNet
Function calling	Native function/tool calling	GA	Works
MCP support	MCP server integration	GA	Works
Code execution	Code Interpreter	GA	Works
Enterprise connectors	1,400+ via Logic Apps	GA	Partial
Web search	Bing Grounding	GA	PUBLIC
Browser	Browser Automation	Preview	Broken

Setup Walkthrough

1. Add a function tool to your agent — test with a simple calculator function
2. Set up MCP server integration for your own services
3. Test Code Interpreter with a data analysis task
4. Block Bing/Web Search via Azure Policy in production
5. Build your personal VNet tool compatibility checklist

Related: LinkedIn Post 5 (Network Isolation), Post 7 (Agent Maturity) — Learning Day 2

L4: Orchestration & Decisioning

What Foundry Provides

Agent Type	Status	VNet	Production Ready
Prompt Agents	GA	Yes	Yes
Workflow Agents	Preview	Partial	No
Hosted Agents	Preview	No	No

Setup Walkthrough

1. Create a prompt agent with a detailed system prompt
2. Attach tools from L3 (function calling, MCP)
3. Configure per-agent Entra managed identity
4. Test agent in the playground
5. Create a second version — test versioning and rollback
6. Explore workflow agents (preview) — understand their limitations before committing

Related: LinkedIn Post 7 (Agent Maturity) — Learning Day 3

L5: Observability & Evaluation

What Foundry Provides

Capability	Feature	Status
Tracing	OpenTelemetry via App Insights	GA (prompt agents)
Evaluators	Quality, safety, task adherence	GA
Custom evaluation	Configurable pipelines	GA
Continuous eval	Scheduled eval against live data	GA
CI/CD	GitHub Actions evaluation gates	GA

Setup Walkthrough

1. Create Application Insights: az monitor app-insights component create
2. Connect to your Foundry project
3. Run your agent — inspect traces in the portal
4. Run a quality evaluator against agent output
5. Run a safety evaluator — verify Content Safety scoring
6. Set up a GitHub Actions workflow with an evaluation gate
7. If using private networking: test tracing (it may break) and plan the workaround

Related: LinkedIn Post 10 (Observability Paradox) — Learning Day 4

L6: Governance & Trust

What Foundry Provides

Capability	Feature	Status
Content filtering	Content Safety (always on, configurable)	GA
Prompt protection	Prompt Shields — jailbreak detection	GA
RBAC	Entra ID + 4 built-in roles + custom	GA
Infra policy	Azure Policy integration	GA
Threat detection	Microsoft Defender	GA

What You Build (This Is the Big One)

RBAC Roles

Role	Use For	Risk Level
Azure AI User	Developers (least privilege)	Low — default for all devs
Azure AI Project Manager	Team leads	Medium
Azure AI Account Owner	Resource creation only	Medium — no data actions
Azure AI Owner	Never without justification	High — loaded gun in prod

Setup Walkthrough

1. Switch to Entra ID authentication — remove all API keys
2. Assign Azure AI User to developers (least privilege)
3. Verify Azure AI Owner is NOT assigned to any developer accounts
4. Configure Content Safety severity thresholds
5. Test Prompt Shields — attempt a jailbreak, verify detection
6. Create Azure Policy assignments to block dangerous tools in production
7. Design your approval gate architecture (Logic Apps or custom workflow — Foundry does not provide this)

Related: LinkedIn Post 3 ({a}OS debut), Post 4 (Identity) — Learning Day 5

L7: Experience & Intent

What Foundry Provides

Capability	Feature	Status	Limitation
Portal	Foundry Portal (classic + new)	GA	New portal lacks VNet support
Agent builder	Visual agent configuration	GA	—
Publishing	Teams, M365, BizChat	GA	Requires public endpoints
API surface	REST + Python/JS SDKs	GA	—
Playground	Agent testing playground	GA	—

Setup Walkthrough

1. Navigate the Foundry Portal — toggle between classic and new portals
2. Use the classic portal or CLI for network-isolated management (the new portal doesn't support it)
3. Test agent publishing to Teams (note the public endpoint requirement)
4. Design your L7 surface: what will end users actually see?
5. Plan: approval surfaces, escalation flows, intent disambiguation — none of these come from Foundry

Related: LinkedIn Post 3 (Governance debut) — Learning Day 5

Network Isolation

Three isolation dimensions: inbound (private endpoints), outbound from resource (VNet injection), and outbound from agents (tool-level).

What Works in VNet

Tool / Feature	VNet Status
Private endpoints (inbound)	Works
VNet injection (agent compute)	Works (/27+ subnet)
Function calling	Works
MCP (private)	Works
Code Interpreter	Works
AI Search (private endpoint)	Works

What Breaks in VNet

Tool / Feature	Issue
File Search	Not supported in VNet isolation
OpenAPI Tool	Not supported in VNet isolation
Azure Functions (tool)	Not supported in VNet isolation
Browser Automation	Not supported in VNet isolation
Hosted Agents	No VNet support at all
Workflow Agents	Inbound only
Tracing (private App Insights)	Breaks entirely
New Foundry Portal	Must use classic, SDK, or CLI

What Goes Over Public Internet

Tool	Risk
Bing Grounding	Public internet even in "isolated" environments
Web Search	Public internet even in "isolated" environments
SharePoint Grounding	Public internet even in "isolated" environments

Related: LinkedIn Post 5 (Network Isolation Exceptions Table) — Learning Day 6

Cost Governance

The platform itself is free to explore. Costs come from model consumption, storage, search, networking, and compute.

Native vs. Custom

Capability	Source
Budget alerts	Native — Azure Cost Management
Per-resource tracking	Native — Azure Cost Management
Per-team chargeback	Custom — requires APIM gateway
Per-user token budgets	Custom — requires APIM + logic
Real-time spend enforcement	Custom — requires APIM kill switch
Cross-service attribution	Custom — Log Analytics queries

Related: LinkedIn Post 9 (Cost Governance) — Learning Day 6

IaC & CI/CD

Deploy via Bicep/CLI, not the portal. The new portal does not support network isolation workflows. IaC is not optional — it's the only reliable path for production.

Bicep Templates

• 00-basic — Simple Foundry resource + project
• 19-hybrid-private-resources-agent-setup — Network-isolated agent setup with BYO storage

Fork the azure-ai-foundry/foundry-samples Bicep templates. Customize for your policies and compliance. Maintain as an internal module.

Phase 1 Architecture (Minimum Viable Platform)

• Foundry resource + project
• Private endpoints
• One model deployment (pay-as-you-go)
• One prompt agent (GA)
• Application Insights (with tracing workaround if private)
• APIM AI Gateway (cost metering from day one)
• Azure Cost Management budget with alerts
• Entra-only authentication (no API keys)

CI/CD Pattern

1. Bicep deployment via GitHub Actions
2. Agent evaluation gate (quality + safety evaluators)
3. Cost check gate (budget threshold)
4. Promote: dev → staging → prod (separate Foundry resources per environment)

Related: LinkedIn Post 11 (Phase 1) — Learning Day 7

Standards Track

The path from open reference model to internationally recognized standard — IEEE SA → NIST → ISO/IEC JTC 1/SC 42.

Roadmap

Eight phases from current foundation to ISO recognition.

#	Phase	Target	Key Deliverable
0	Foundation	✓ Done	v1.0 reference model locked, Explorer with 40+ products classified
1	Atlas Adoption	Q2-Q3 2026	Pilot deployment under perpetual license; internal validation across real Atlas workflows
2	Community Review	Q3-Q4 2026	5-10 external reviewers (industry + academic); objections and endorsements captured
3	Standards-Ready Package	Q4 2026	Neutral spec, worked use cases, problem statement, evidence memo
4	NIST Alignment	Q4 2026 - Q1 2027	Finalize AI RMF crosswalk; submit for NIST community alignment feedback
5	IEEE Incubation	Q1-Q2 2027	IEEE SA pre-standardization outreach; draft PAR
6	Formal Submission	Q2-Q3 2027	IEEE PAR submission via myProject; identify sponsoring committee
7	ISO Track (parallel)	2027+	ISO/IEC JTC 1/SC 42 WG 1 route via ANSI (if IEEE traction is strong)

Why Standardize?

{a}OS already solves a real problem — giving architects a shared ontology for the AI operations stack. Standardization turns that ontology into something procurement can cite, regulators can reference, and vendors can map against. The goal is not prestige; it's durability and interoperability.

Phase 1 — Neutral Spec Extraction

Before any standards body will engage, the model must exist as a vendor-neutral, IP-clean specification — no product names, no marketing language, no assumptions about Azure or any other cloud.

#	Deliverable	Description
1	Problem Statement	One-page framing: what gap this model fills, why existing frameworks don't cover it.
2	Scope & Non-Scope	What the standard defines vs. what it explicitly does not. Includes boundary diagram.
3	Neutral Terminology	Dual-label mapping: Stratum ↔ Tier, Substrate ↔ Capability Group, Construct ↔ Entity, Primitive ↔ Attribute, Axis ↔ Cross-cutting Concern.
4	Metamodel Diagram	UML or SysML class diagram showing the 5-concept ontology and relationships.
5	Use Cases (6×)	Six scenarios demonstrating model utility: vendor evaluation, compliance mapping, architecture review, gap analysis, procurement scoring, and interop testing.
6	Crosswalk Table	How {a}OS maps to existing frameworks: NIST AI RMF, EU AI Act risk tiers, ISO/IEC 42001, OWASP AI Top 10.
7	Evidence of Need	Market research, analyst citations, or adoption metrics demonstrating industry demand for such a classification.

Phase 2 — IEEE SA Incubation

IEEE Standards Association is the fastest on-ramp for a new standard. Two entry paths exist:

Path	Timeline	Best For
Industry Connections Activity (IC)	6–12 months	Rapid incubation, building a coalition, publishing a white paper or technical report before committing to a full standard.
Standards Working Group (WG)	18–36 months	Full IEEE standard (e.g., P-series number). Requires 5+ organizational participants, a sponsor, and a PAR (Project Authorization Request).

Phase 3 — NIST Crosswalk

NIST does not create classification standards for industry models, but the AI Risk Management Framework (AI RMF 1.0) is the US government's anchor document. Mapping {a}OS strata to AI RMF functions creates a compliance bridge that federal buyers can reference.

{a}OS Stratum	AI RMF Function	Alignment Notes
L7 Experience & Intent	GOVERN 1 — Policies	User intent mapping, transparency requirements
L6 Governance & Trust	GOVERN 2–6, MAP 1	Risk tolerance, roles, compliance controls
L5 Observability & Evaluation	MEASURE 1–4	Metrics, monitoring, evaluation gates
L4 Orchestration & Decisioning	MANAGE 1–4	Workflow control, decision audit trail
L3 Execution & Interfaces	MAP 2–3	Runtime boundaries, API contracts
L2 Knowledge & Memory	MAP 4–5	Data provenance, knowledge governance
L1 Models & Infrastructure	MANAGE 1 (infra)	Compute, model lifecycle, deployment targets

Phase 4 — ISO / IEC JTC 1 / SC 42

The ultimate destination: submission to ISO/IEC JTC 1/SC 42 WG 1 (AI Foundational Standards). This is a 3–5 year process but produces a globally recognized standard that procurement, regulators, and auditors rely on.

Stage	ISO Process	What Happens
NP	New Work Item Proposal	National body sponsors the proposal; 5+ participating P-members must vote yes.
WD	Working Draft	WG 1 iterates on the spec through 1–3 drafts.
CD	Committee Draft	Full SC 42 review and comment resolution.
DIS	Draft International Standard	Broader JTC 1 ballot; editorial polish.
IS	International Standard	Published as ISO/IEC xxxxx. Periodic review every 5 years.

90-Day Execution Plan

A realistic first-quarter roadmap to go from open model to submission-ready package.

Weeks	Milestone	Key Activities
1–2	Neutral Spec v0.1	Strip branding, write problem statement, produce dual-label terminology map, draft metamodel diagram.
3–4	Gap Analysis	Complete crosswalk table (NIST AI RMF, EU AI Act, ISO 42001, OWASP). Identify gaps and overlaps.
5–6	External Review	Recruit 3–5 domain reviewers (academia, industry, gov). Collect structured feedback. Iterate spec to v0.2.
7–8	Submission Package	Compile complete IEEE IC Activity proposal or PAR draft. Include use cases, evidence of need, and letters of support.
9–12	Outreach & Coalition	Present at 2+ industry events or webinars. Recruit organizational co-sponsors. Submit to IEEE SA NesCom.

Strategic Advice

Do	Don't	Why
Ship dual-label docs from Day 1	Hard-code only branded terms	Standards bodies reject vocabulary that implies vendor lock-in.
Map to existing frameworks early	Claim the model is "entirely new"	Reviewers need to see how it extends — not replaces — prior art.
Recruit co-sponsors before submitting	Solo-author the submission	IEEE and ISO require multi-org participation. Solo proposals stall.
Publish open-source tooling alongside the spec	Gate the model behind a paywall	Adoption drives standardization; scarcity kills it.
Focus on the ontology hierarchy	Try to standardize implementation details	Standards define what, not how. Keep architecture decisions out of the spec.

This roadmap will be updated as the standardization effort progresses. Track deliverable status in the Roadmap tab.
